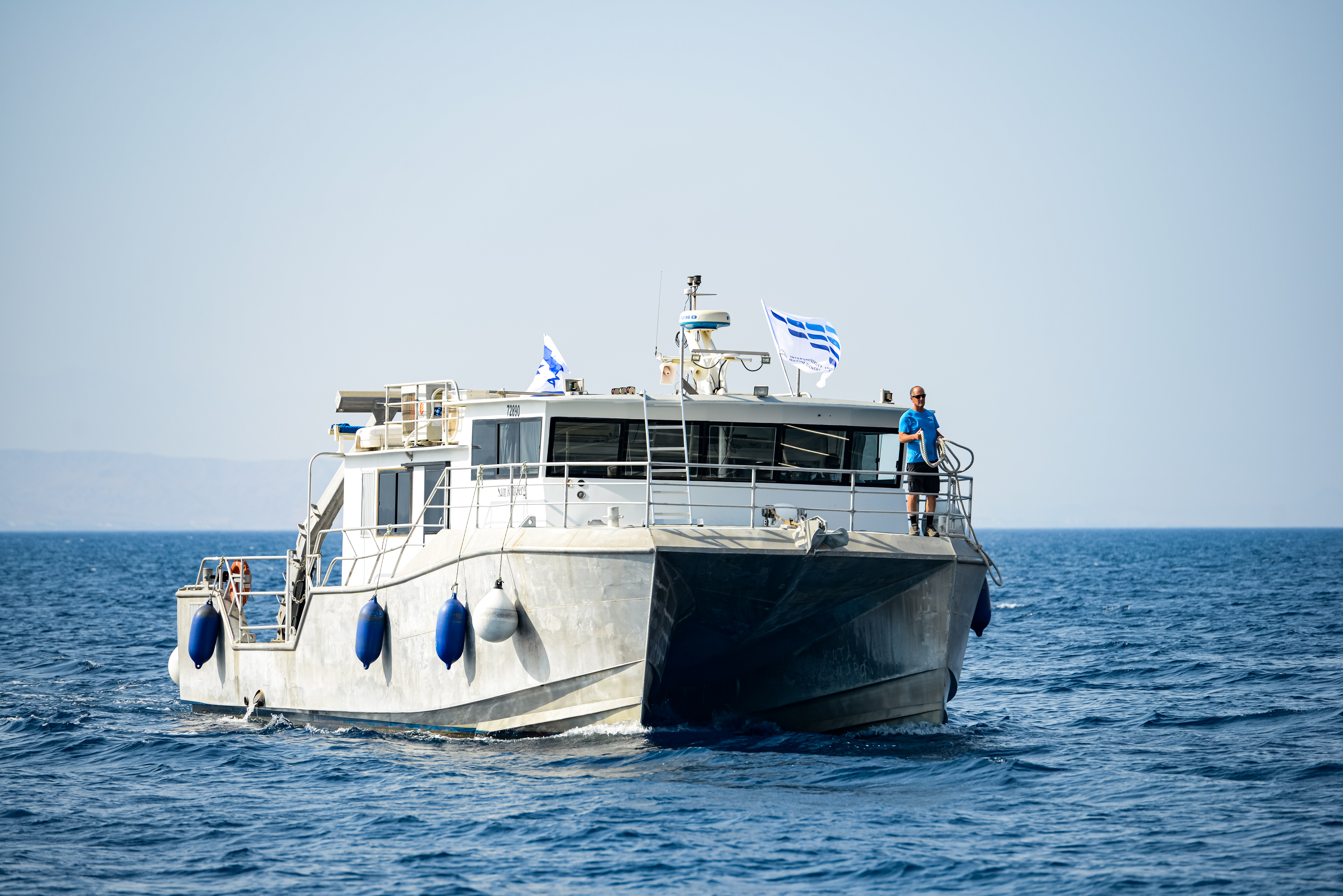

RV Sam Rothberg
The Interuniversity Institute for Marine Sciences in Eilat
IsraelGPS: Arazim , HPLS 10Hz GPS Heading Sonar: Simrad ES60, dual 1kw channel Transducer – Simrad 38-9 38kHz 1kw , 200-28E 200kHz 1kw Current Profiler (ADCP): Mariner, 300 kHz Nav & Survey Software : Hypack Winch: Sea-Mac 5020EHLW with 2000m 5/16” EM one conductor cable A-frame: 2 t Crane: Emco Veba 703 2s 2.5TM marine crane Hydraulic capstan : 3 t Water Sampling: Carousel-online Data SBE32/33 12x12l G.O sampling bottles CTD : SBE19 plusV2 , DO Optode MK2 4330F, Wetlab ECO chla, PSA-916 Sonar Altimeter , Par , Turbidity Multi-corer: Ocean Instruments MC-400 Piston corer: mooring systems PC-150 MOCNESS: B.E.S.S plankton sampling multi net system , 1 sq m , 10 nets – 100 , 300 , 600 , 1000 microns. ROV : ECA H800 real time FHD , 5 Function manipulator , 700m umbilical 450m working depth
No tracked activity in this period
Operating area: Israeli waters , the gulf of Eilat
12
Research bunks
15 m
Length
10 kn
Cruise speed
daily use – day/night
Endurance
2009
Year built
3
Crew
